20 Grade Standard Ultra Vacuum Pump Oil

20gradeicon-sm3-png.pngWhy choose 20 Grade vacuum pump oil?

  • VacOil 20 Grade is a upgraded oil vs the 19 grade and is also used in all two stage oil sealed rotary vane vacuum pumps.
  • VacOil 20 Grade has a vapor pressure of less than 10^-6 torr vs 10^-5 torr for 19 grade and is slightly more viscous and more stable than 19 grade oil.
  • VacOil 20 Grade is used to get better resistance to water and chemical attack and to decrease the frequency of oil changes.

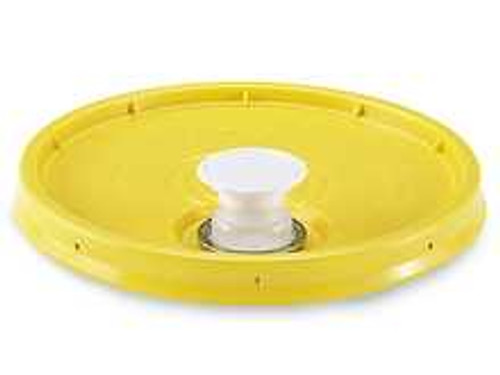

  • Each cap is induction sealed to lock out moisture and contaminants.
  • VacOil recommends that you change your vacuum pump oil at least every 3 months to prolong the life of your vacuum pump.

Description

VacOil 20 Grade is a severely hydro-treated paraffinic oil that is double distilled through a molecular distillation process to remove light end fractions. Unique in comparison to competitive oils, VacOil 20 Grade is highly saturated and contains less than 0.01% sulfur similar to technical white oils. Its high molecular weight and viscosity index provides longer service life and reduced build up of varnish and carbonized oil on the internal pump components. VacOil Grade 20 vacuum pump oil is ideal for rotary vane pumps and high vacuum blowers, and eliminates cross contamination when used in mechanical and diffusion pumps.

VacOil vacuum fluids are superior quality molecularly distilled vacuum pump oils engineered to perform and provide the ultimate protection from wear that causes pump repairs and pump failures. Lab tests reveal superior performance such as viscosity change and sediment weight when tested against competitive brand oils, outlasting and outperforming other vacuum oils.

Specifications

  • Vapor Pressure: < 1 x 10^-6 Torr
  • Viscosity @ 100°F: 62
  • Flash Point: 245°C. 473°F
  • Fire Point: 271°C. 520°F
  • Pour Point: -15°C
  • Specific Gravity: 0.869

Resources

20 Grade Vacuum Pump Oil SDS

Brand Equivalents

  • Alcatel A200/A120/A111
  • Leybold HE200, LVO 100, LVO 130, GS77, LVO 120, GS32
  • Inland 20
  • VWR 20
  • Varian CS
  • Stokes V Lube "L"
  • CMP 20
  • CVP 200
  • Busch R-590, VM68, VM32
  • Edwards Ultragrade 20, E70, Ultragrade 15
  • Precision Plus UG20, Plus 20
  • Kurt Lesker KJLSS70
